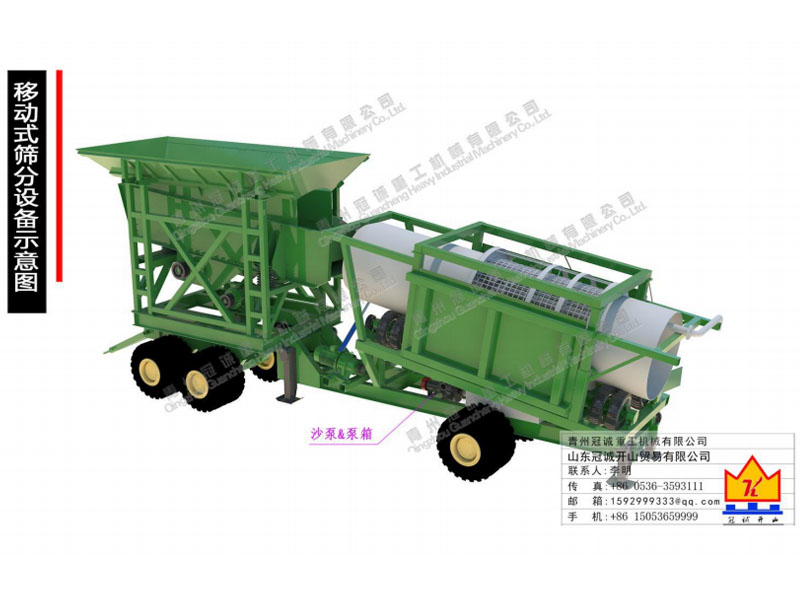

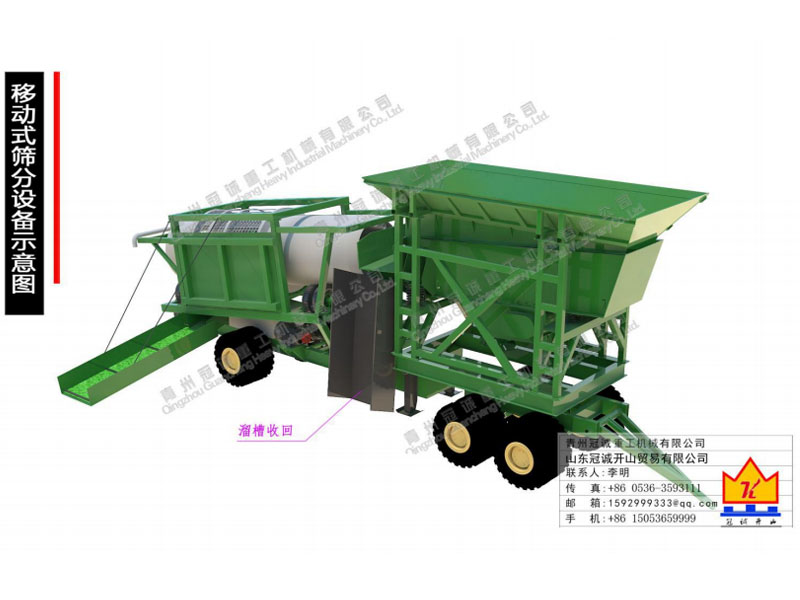

移动式石英砂除杂设备

移动式石英砂除杂设备部分参数

底盘chassis
三轴 12 条 9.00-2#轮胎；
自制重型汽车底盘，采用 30#\25#工字钢梁焊接


振动给料机Vibrating feeder
给料槽规格：4800X1000，20mm 厚板
料斗：4800X2300，16mm 厚板
上层篦条：28*90 链条钢，间距 70mm
Feed tank specification: 4800X1000, 20 mm thick plate
Hopper: 4800 x2300, 16mm thick plate
Upper grate: 28 * 90 chain

绞洗筛Shaftless rollerscreen
规格：Ø1.6X6 米；
绞洗筒：Ø1.3 米，长约 2.3 米，板厚 12mm，内设整
条+分段式铰刀；
滚筒筛：内径 1.3 米，外径 1.6 米，长度 3 米；
内层编孔材质为耐磨提油杆，孔径 40*240mm;
外层捆绑 6mm 耐磨锰钢筛网；
托轮：4 组共 8 条 6.50-10 实心工程轮胎；
供水系统：采用中央供水+侧冲水方式，中央供水部分
采用可拆卸式防堵喷水咀，60°交叉扇形均匀喷水。
电机：7.5KW 摆线针*2 台
Specification: Ø 1.6x6m;
Mixing drum：It is 1.3m long, about 2.3m long and 12mm
thick. It is equipped with a whole + segmented reamer
Shaftless roller screen：The inner diameter is 1.3m, the
outer diameter is 1.6m and the length is 3M;
The inner layer is made of wear-resistant oil lifting rod
with an aperture of 40 * 240mm;
The outer layer is bound with 6 mm wear-resistant
manganese steel screen;
Supporting wheel: 4 groups of 8 6.50-10 solid
engineering tires in total;
Water supply system: central water supply + side
flushing mode is adopted, the central water supply part
adopts removable anti blocking water nozzle, and 60 °
cross fan-shaped uniform water spraying.
